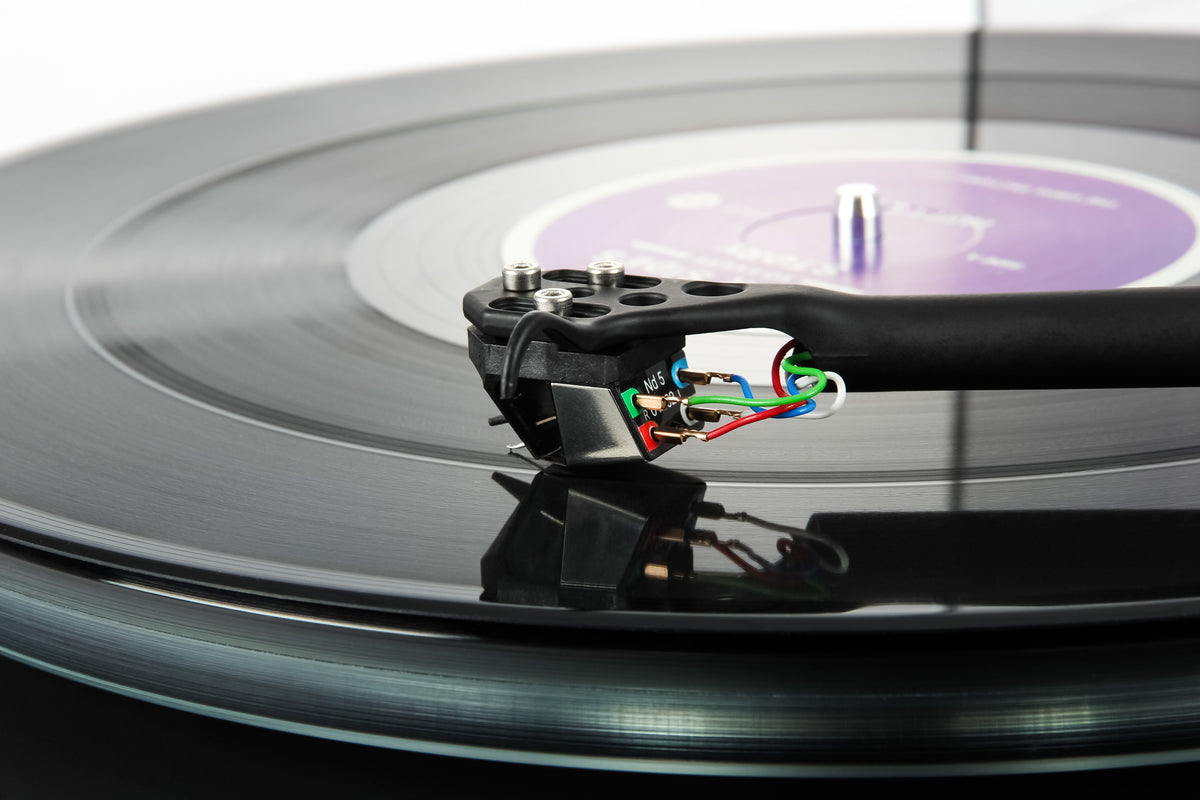

Moving‑magnet vs moving‑coil cartridges?

If you’re diving into the world of vinyl playback, the choice between moving-magnet (MM) and moving-coil (MC)cartridges is one of the most important - and most discussed - decisions you’ll make. Both convert the physical movement of the stylus into an electrical signal, but they do it in slightly different ways that have major implications for sound, price, and system matching.

1. How They Work

Moving-Magnet (MM) Cartridges

In an MM design, the stylus (needle) is attached to a tiny magnet that moves within fixed coils of wire.

• As the stylus traces the grooves, the magnet moves and induces a current in the coils.
• Because the coils are stationary, the output is relatively strong (typically 4–6 mV) and the stylus assembly can be replaced easily.

Advantages:

• Higher output: works with any standard phono input (no special preamp needed).
• Replaceable stylus - easy and inexpensive to maintain.
• Usually more robust and forgiving of setup.
• Great value and longevity.

Disadvantages:

• The moving magnet adds mass to the stylus assembly, slightly reducing agility and fine detail retrieval.
• Can have a slightly warmer, softer sound compared to the most revealing MC designs.

Moving-Coil (MC) Cartridges

MC cartridges flip the concept: the coils move, and the magnets stay fixed.

• The coils are tiny and extremely lightweight, allowing the stylus to track groove modulations with incredible precision.
• Because the coils are so small, the signal output is much lower (typically 0.2–0.5 mV) and requires a step-up transformer (SUT) or a dedicated MC phono stage.

Advantages:

• Greater accuracy and transient response - they capture the most delicate micro-details.
• Lower moving mass means superior tracking of complex grooves.
• Often more open, transparent, and dynamic presentation.

Disadvantages:

• Low output requires high-gain, low-noise amplification.
• Usually non-replaceable stylus - when it wears out, the entire cartridge must be re-tipped or replaced.
• Generally more expensive and delicate.

2. How They Sound

Characteristic

Moving-Magnet (MM)

Moving-Coil (MC)

Output Level

Higher (4–6 mV)

Lower (0.2–0.5 mV)

Sound Signature

Warm, smooth, slightly rounded

Detailed, airy, more dynamic

Tracking Ability

Good

Exceptional

Maintenance

Stylus replaceable

Usually not user-replaceable

Price Range

$100–$600 typical

$300–$10,000+ possible

Phono Stage Requirement

Standard MM input

Dedicated MC or SUT required

3. Matching Your System

If you’re using a standard integrated amp or phono stage, a moving-magnet cartridge is the easiest and most forgiving choice. It’s plug-and-play, offers excellent musicality, and is ideal for casual to serious listening.

If your system already includes a high-quality MC-capable phono stage (or if you’re chasing ultimate fidelity), a moving-coil cartridge can reveal breathtaking layers of texture, air, and space - the kind of realism that makes vinyl magical.
