How do I integrate a subwoofer into a stereo setup?

Adding a subwoofer to a two-channel stereo system can dramatically enhance realism - not just by extending bass, but by improving overall clarity, dynamics, and scale. Done correctly, a good sub doesn’t draw attention to itself at all; it simply makes your speakers sound bigger, fuller, and more effortless.

Here’s how to get it right.

1. Why Add a Subwoofer to Stereo?

Many stereo speakers, even excellent ones, roll off below 50–60 Hz. That means you’re missing the lowest octave - the foundation of instruments like kick drums, pipe organs, and double bass.

A properly integrated subwoofer:

• Extends the system’s frequency response down to 20 Hz or lower.
• Reduces strain on your main speakers and amplifier.
• Adds weight and realism without muddying the mids.
• Improves spatial depth, since low-frequency ambience defines room acoustics in a recording.

The key is integration - not more bass, but the right bass.

2. Connection Options

A. Line-Level (Preamp) Connection

The most common and often best-sounding method.

• Connect the subwoofer’s line-level (RCA or XLR) input to the preamp output of your integrated amp or preamplifier.
• If your amplifier has pre-out / main-in jumpers, insert the sub in between - many subs offer both input and output jacks.

This method lets the sub’s internal crossover handle bass management and keeps the main speakers playing only what they do best.

B. Speaker-Level (High-Level) Connection

Some audiophiles prefer this because the sub receives the same signal - and sonic character - as your main speakers.

• Connect the subwoofer’s high-level inputs directly to your amplifier’s speaker terminals (never in series; they’re just sensing inputs).
• Useful when your amp lacks a dedicated sub output or pre-out.

This approach can blend more naturally with all-analog systems, especially with tube amplifiers.

3. Setting Crossover Frequency

The crossover determines where your sub takes over from your main speakers.

• Start around 10 Hz above your speakers’ rated low-frequency limit.
• Example: if your speakers reach 45 Hz, set the sub’s crossover around 55–60 Hz.
• Adjust by ear - aim for seamless transition, not overlap or gaps.
• If your amp or processor allows high-pass filtering to your mains, use it; it relieves them of deep-bass duty and tightens the sound.

Tip: Play a familiar acoustic track (like a live bass recording). When integrated properly, you shouldn’t hear the sub at all - you should just feel that the system sounds more natural and complete.

4. Phase and Polarity

Every room interacts differently. Set the sub’s phase switch (0° or 180°) so bass from the sub and speakers are in sync - reinforcing rather than cancelling each other.

• Listen to a bass-heavy track and toggle the phase switch; choose the setting that gives the most even, full sound without boom.
• Some advanced subs offer variable phase control for finer adjustment.

5. Subwoofer Placement

Low frequencies are omnidirectional, but the room still shapes them dramatically.

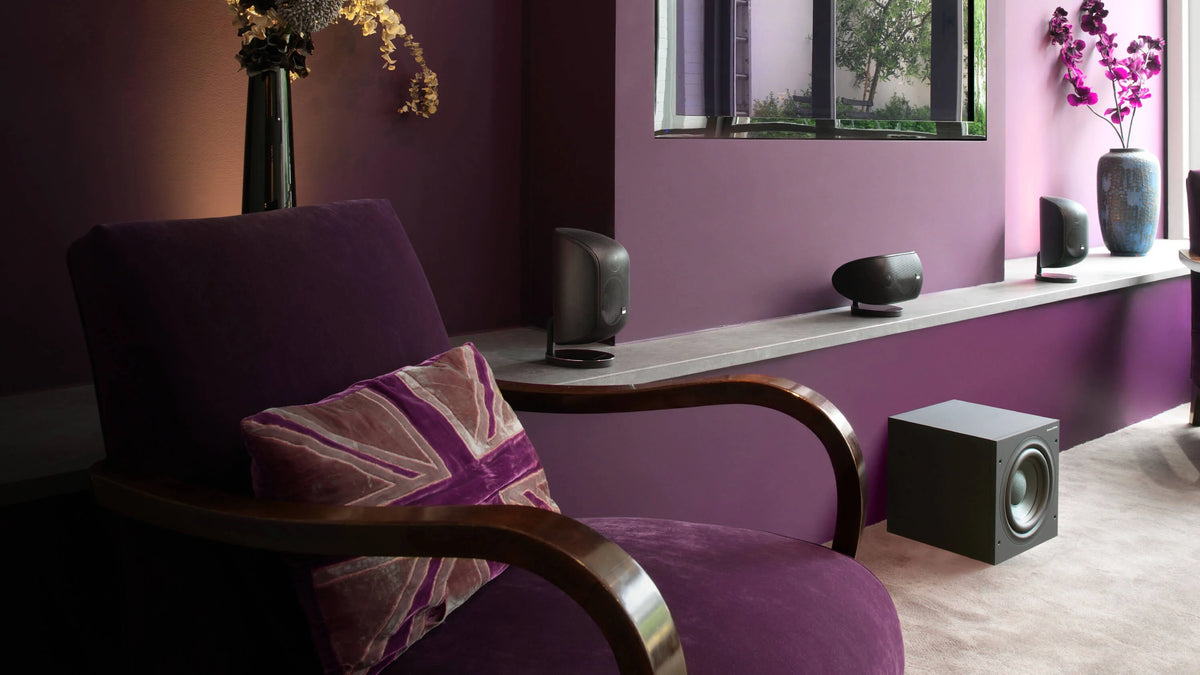

• Start between your speakers, slightly forward of the front baffle line.
• If bass feels boomy, move the sub away from walls or corners.
• If it’s too thin, move it closer to a wall to reinforce output.
• Two subs (stereo bass) can smooth response across the room and improve imaging, especially in larger spaces.

6. Fine-Tuning and Calibration

For the best results:

• Use room correction software (Dirac ART, Trinnov, or built-in DSP) if available.
• Measure response with a calibration mic or app (like REW or even a smartphone SPL meter).
• Listen critically at normal levels - the goal is balanced, not booming.
