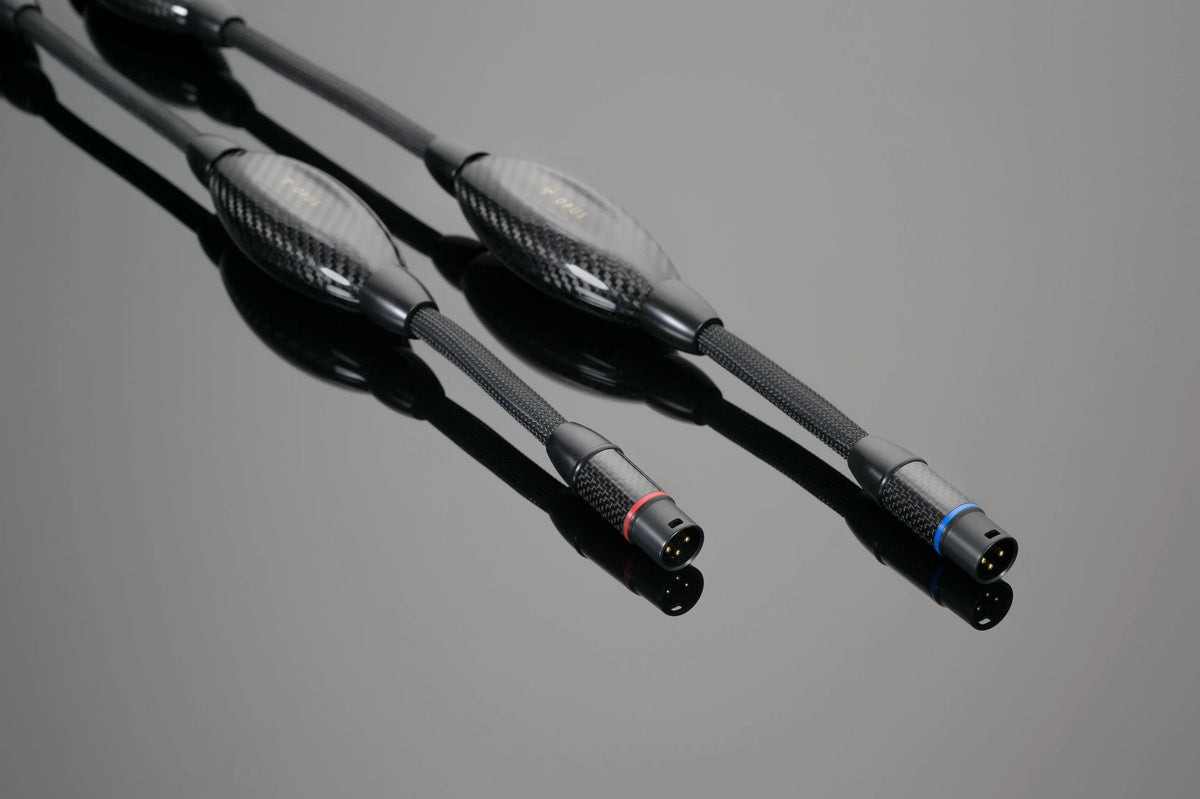

Balanced (XLR) vs unbalanced (RCA) connections?
When connecting components in your hi-fi system, you’ll often have the choice between balanced (XLR) and unbalanced (RCA) connections. Both transfer the same musical signal, but they do it in very different ways. The right choice depends on how your gear is designed - and, in particular, whether your system is fully balanced.
1. The Basics
- Unbalanced (RCA) connections are the traditional hi-fi standard. They use two conductors:
- One for the signal
- One for the ground/shield (which protects the signal from noise)
They’re simple, inexpensive, and perfectly fine for short cable runs between nearby components. - Balanced (XLR) connections use three conductors:
- A positive signal
- A negative (inverted) signal
- A ground/shield
The receiving component flips the inverted signal back in phase - effectively canceling out any noise picked up along the way. This is known as common-mode noise rejection, and it’s what makes XLR cables so quiet and resilient.
2. Real-World Performance
Noise and Interference
Balanced cables are extremely effective at rejecting hum, buzz, and electrical noise - especially over longer cable runs or in systems with multiple grounded components.
RCA cables can sound just as clean in most home systems, but they’re more susceptible to interference, especially when power cables and interconnects are bundled together.
Signal Strength
Balanced connections usually run at a higher signal voltage, which helps preserve detail and dynamics across the chain - particularly valuable in higher-end or longer systems.
Connector Design
- XLR connectors are robust, lock securely, and maintain consistent contact pressure for long-term reliability.
- RCA connectors are compact and simple, though their performance depends heavily on build quality and shielding.
3. Fully Balanced Components - When XLR Becomes Essential
Here’s where things get important: some amplifiers, preamps, and DACs are designed as fully balanced components. That means the entire internal signal path - from input to output - is built around separate, symmetrical circuits for the positive and negative halves of the audio waveform.
When such a component is connected via XLR cables, both halves of that balanced signal travel independently all the way through the system. This preserves the design’s full performance potential:
- Lower noise floor - because common-mode noise rejection occurs throughout the entire circuit, not just at the input.
- Higher dynamic range - as both halves of the waveform carry equal signal strength.
- Greater channel separation - since left and right signals are fully isolated from each other.
If you use RCA cables with fully balanced gear, you effectively “collapse” the circuit into single-ended operation. It’ll still work - and sound good - but you lose the noise cancellation and linearity that the designer intended.
In short:
If both your source and amplifier are fully balanced, XLR cables aren’t just preferable - they’re essential for hearing what your equipment can really do.
