Rotel RMB1506 6 Channel Power Amplifier

The Rotel RMB-1506 is a purpose-built multi-channel amplifier designed for distributed audio and custom installation systems. With six channels of amplification in a single chassis, it offers a clean, efficient way to power multiple zones or additional speakers without the need for multiple amplifiers.

Each channel delivers 50 watts into 8 ohms (80 watts into 4 ohms), with all channels driven simultaneously—ensuring consistent performance across every zone. This makes it well-suited for applications such as whole-home audio, in-ceiling speaker systems, or adding extra channels to a home theatre setup.

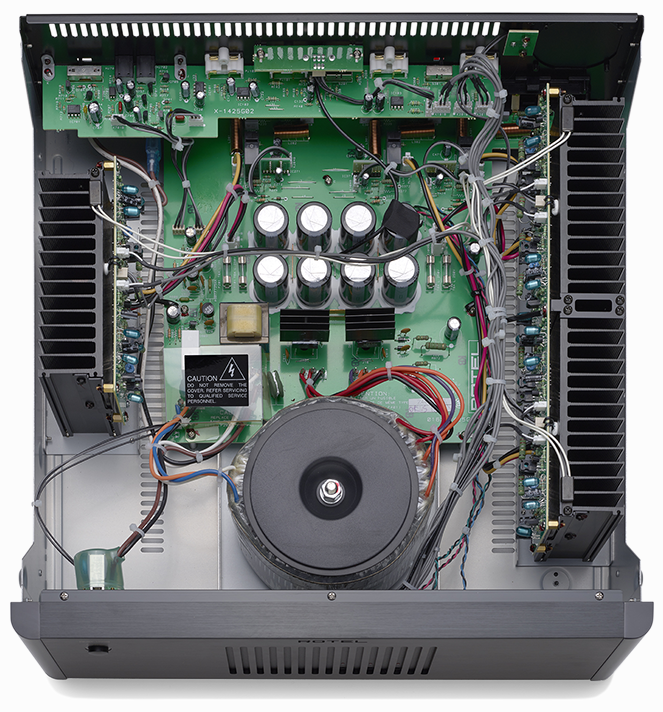

The RMB-1506 is built around Rotel’s Class AB amplification and Balanced Design Concept, combining carefully selected components with a robust internal layout to maintain stability and low distortion. A large in-house manufactured toroidal transformer and high-capacity capacitors provide the current reserves needed for reliable operation across all six channels.

Designed with installation flexibility in mind, the RMB-1506 includes a range of practical features. Input linking allows multiple channels to share a single source, while front-panel attenuation controls make it easy to level-match different zones. A buffered link output enables system expansion, and both signal sensing and 12V trigger inputs support automated power control.

The amplifier is housed in a rack-friendly 3U chassis with included rack ears, making it easy to integrate into structured wiring systems or dedicated equipment racks. Its solid construction and thermal design ensure dependable long-term performance in both residential and professional installations.

Key Features:

• 6 x 50W per channel (8 ohms, all channels driven) Class AB amplification
• 80W per channel into 4 ohms
• Designed for multi-zone and custom installation systems
• Custom toroidal transformer with high-current power supply
• Input linking and front-panel attenuation controls
• Buffered link output for system expansion
• Signal sensing and 12V trigger for automated operation
• Rack-mountable 3U chassis with included ears
• Balanced Design Concept for low noise and reliability

The Rotel RMB-1506 is a practical solution for systems that need efficient, multi-channel power—delivering flexibility, scalability, and dependable performance in a single, installation-ready amplifier.
