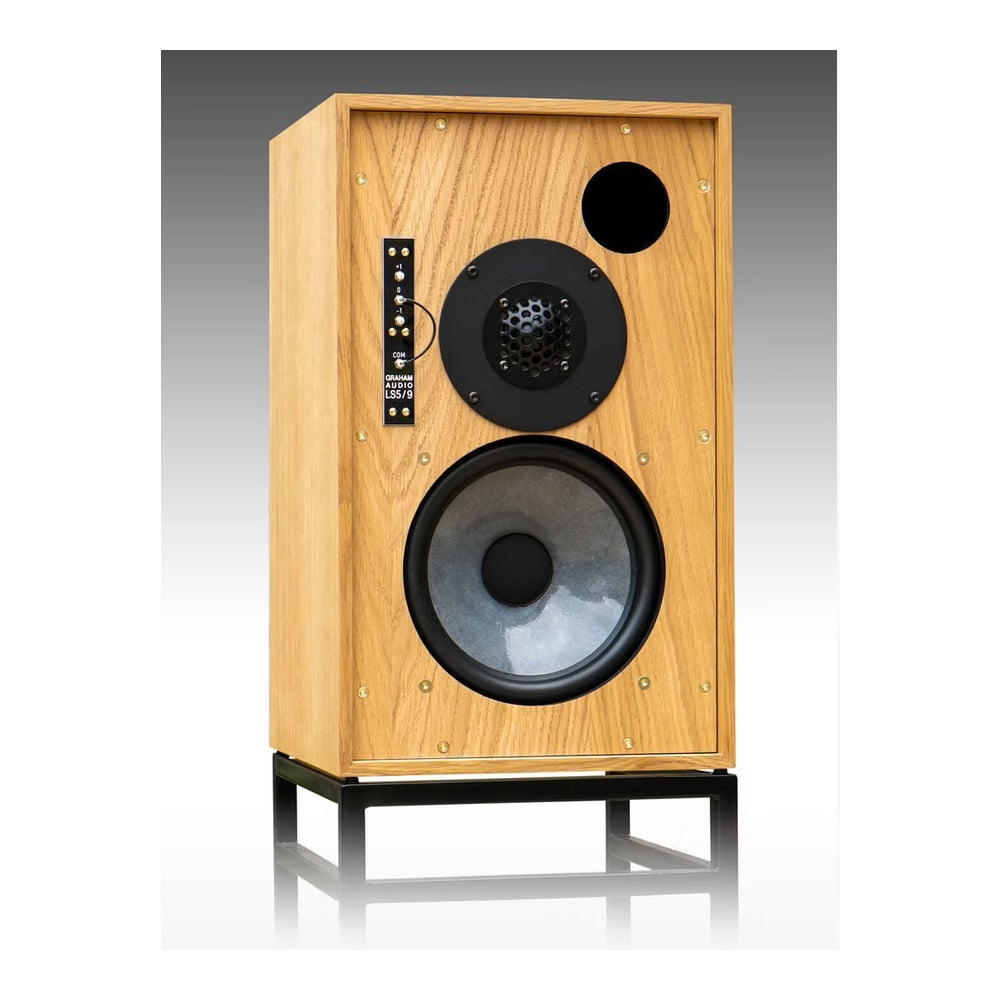

Graham Audio LS5/9 Stand Mount Speaker

The Graham Audio LS5/9 brings authentic BBC monitor performance into home listening environments and professional control rooms. Originally engineered for critical listening in compact spaces, this high-performance bookshelf monitor reveals clear, realistic acoustic detail and an expansive, open mid-range across your favourite recordings.

Natural Tonal Balance:

Recreated by designer Derek Hughes, the speaker pairs a custom 200mm bass and midrange driver developed alongside Volt Loudspeakers with a selected Audax soft dome tweeter. Built around a cast aluminum frame, the polypropylene cone produces tight, accurate bass response, while the tweeter delivers clean high-frequency clarity without listening fatigue. Technical teams rigorously test each driver individually before final assembly to ensure precise tonal matching.

Traditional Thinwall Cabinet Construction:

Crafted in the UK from high-grade 9mm birch plywood, the cabinet follows classic BBC thinwall design principles to keep structural colouration to a minimum. Mass-loaded internal panels shift unwanted vibrations away from critical mid-range frequencies, while internal fabric-backed damping absorbs standing waves inside the enclosure. Finished in hand-matched real wood veneers, the exterior maintains a clean aesthetic thanks to concealed rare-earth magnets securing the front grille.

Authorized Dealer:

We are an authorized dealer for Graham Audio, giving you complete confidence and access to expert advice. Purchasing from an authorized dealer ensures your investment is fully protected with the complete manufacturer's warranty and dedicated technical support.

Key Features:

• Volt Mid/Bass Driver: Provides controlled, low-distortion bass response and realistic dynamic range.
• Audax Soft Dome Tweeter: Delivers smooth, extended high-frequency sound without listening fatigue.
• BBC Thinwall Cabinet: Prevents structural colouration to keep vocal and instrumental tones completely natural.
• Custom Crossover Network: Integrates drivers seamlessly to equalise response across the frequency spectrum.
• Concealed Magnetic Mounts: Holds the grille securely while maintaining clean front panel lines when removed.

Technical Specifications:

• System Type: Two-way reflex monitor
• Enclosure Construction: High-grade 9mm birch plywood thinwall cabinet
• Finish: Real wood veneer
• Dimensions (W x H x D): 28cm x 46cm x 27.5cm
• Weight: 14kg each
• Frequency Response: 56Hz to 16kHz, ±3dB
• Nominal Impedance: 8 ohms
• Sensitivity: 87dB SPL (2.83V, 1m)
• Maximum Output: Over 100dB for a pair at 2m
• Bass/Midrange Driver: 200mm Polypropylene cone
• Tweeter: Audax HD13D34H soft dome tweeter
• Recommended Amplifier Power: 50 to 200 watts unclipped programme
