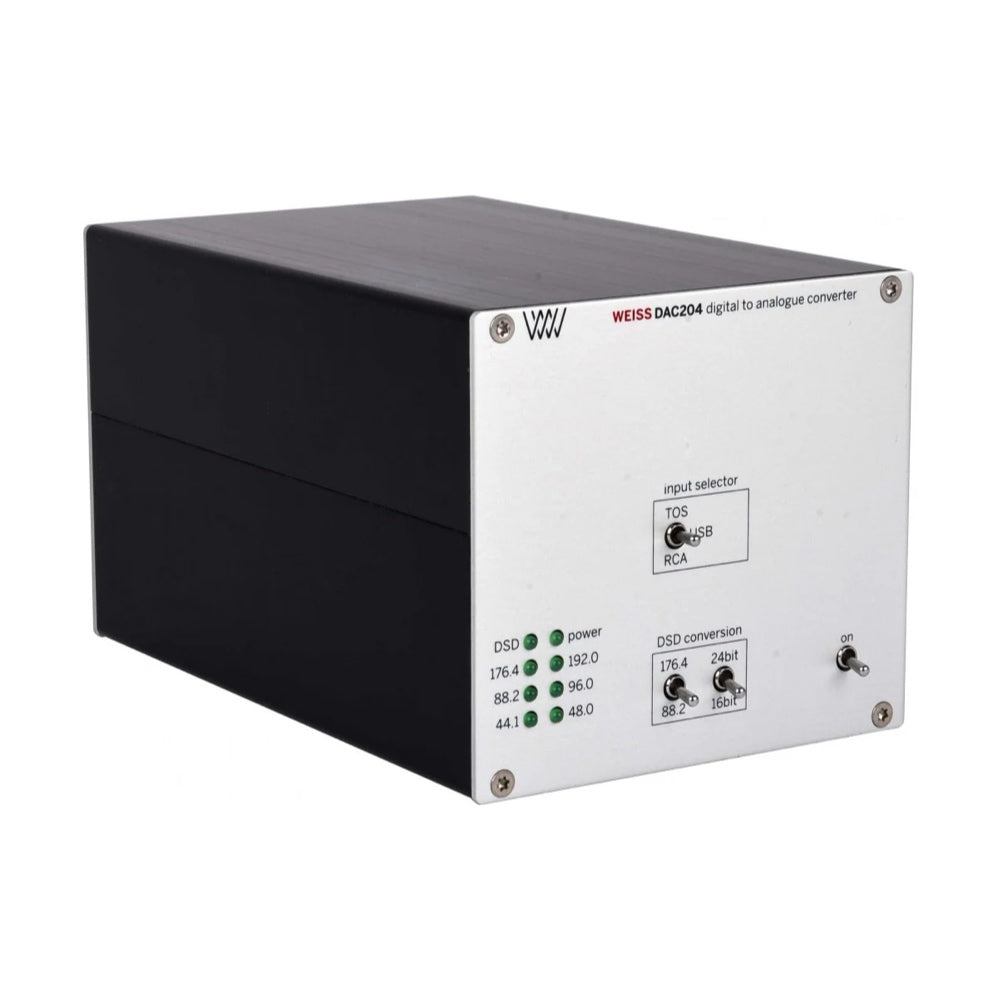

Weiss DAC 204 MK 2 Multi-Format DAC

The Weiss DAC204 MK2 is a compact, studio-grade problem solver built with audiophile refinement. Designed to sit between multiple digital sources and your analogue chain, it delivers pristine, low-jitter D/A conversion and practical digital format conversion—ideal for both mastering environments and high-end home systems.

The MK2 update introduces a redesigned DAC section based on the ESS ES9028PRO with an advanced jitter-elimination circuit, plus a near-zero-ohm output stage for improved drive with difficult cables. Weiss also notes the distortion behaviour and reconstruction filters were fine-tuned by ear for the best real-world musical results.

Where DAC204 MK2 really shines is flexibility: switch instantly between USB, coax (RCA), and Toslink, convert incoming digital to balanced XLR and unbalanced RCA analogue outputs simultaneously, or use it as a digital-to-digital converter with AES/EBU / S/PDIF outputs including BNC. It can also convert DSD to PCM, making it a smart bridge between modern sources and downstream digital gear.

Key highlights

• ES9028PRO MK2 redesign + optimized output stage for cleaner drive and upgraded performance

• Three stereo inputs: USB, Toslink, RCA (AES/EBU or S/PDIF compatible) with front-panel input selector

• Formats: PCM 44.1 kHz–384 kHz and DSD64 / DSD128

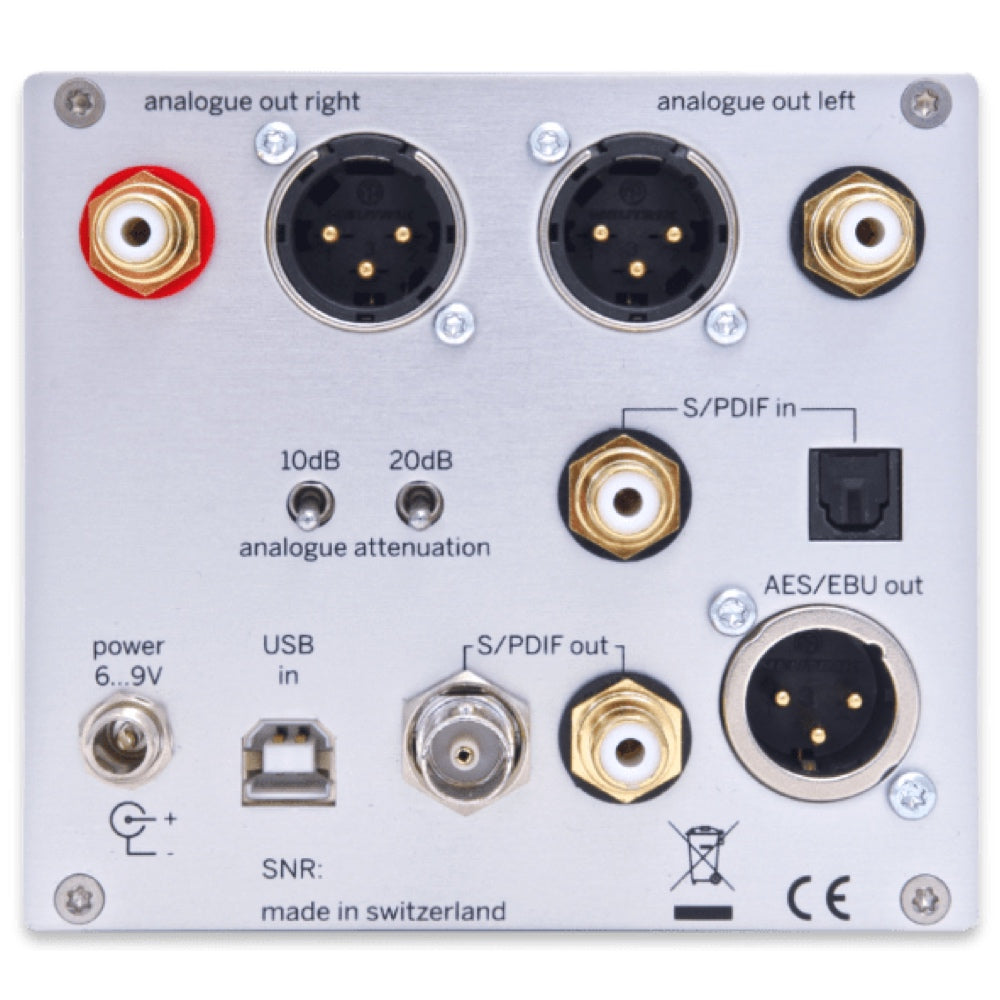

• Analogue outputs: balanced XLR + unbalanced RCA (simultaneous)

• Digital outputs: AES/EBU on XLR, plus S/PDIF on RCA and BNC

• Optional system upgrade path: users often pair it with the Weiss PSU102 for further performance gains

At a glance

• Best for: switching multiple digital sources, ultra-clean DAC duty, DSD→PCM conversion, and digital bridging (USB→AES/EBU/S/PDIF)

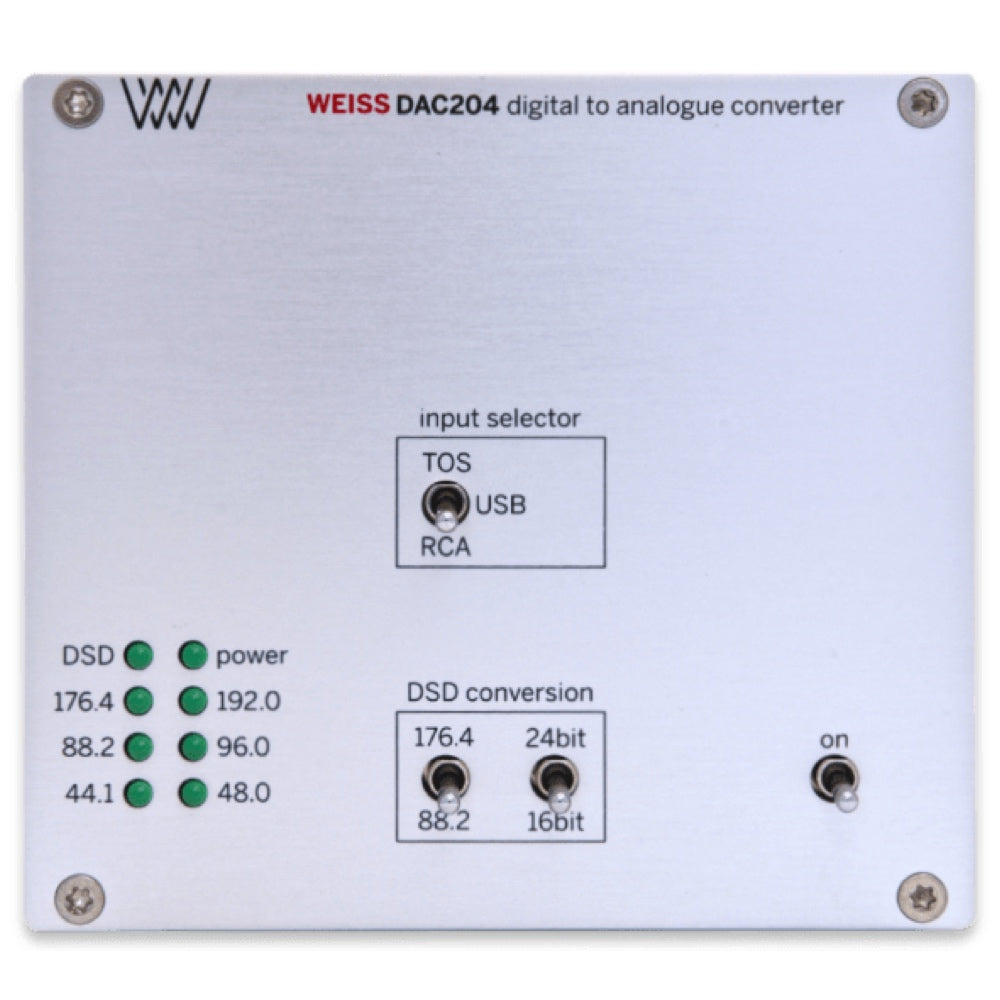

• Controls: power, input selector, DSD→PCM settings, output level switches

• Note: unlike Weiss DAC501 / HELIOS, DAC204 MK2 is focused on conversion and connectivity (no onboard DSP suite/remote-control platform).
