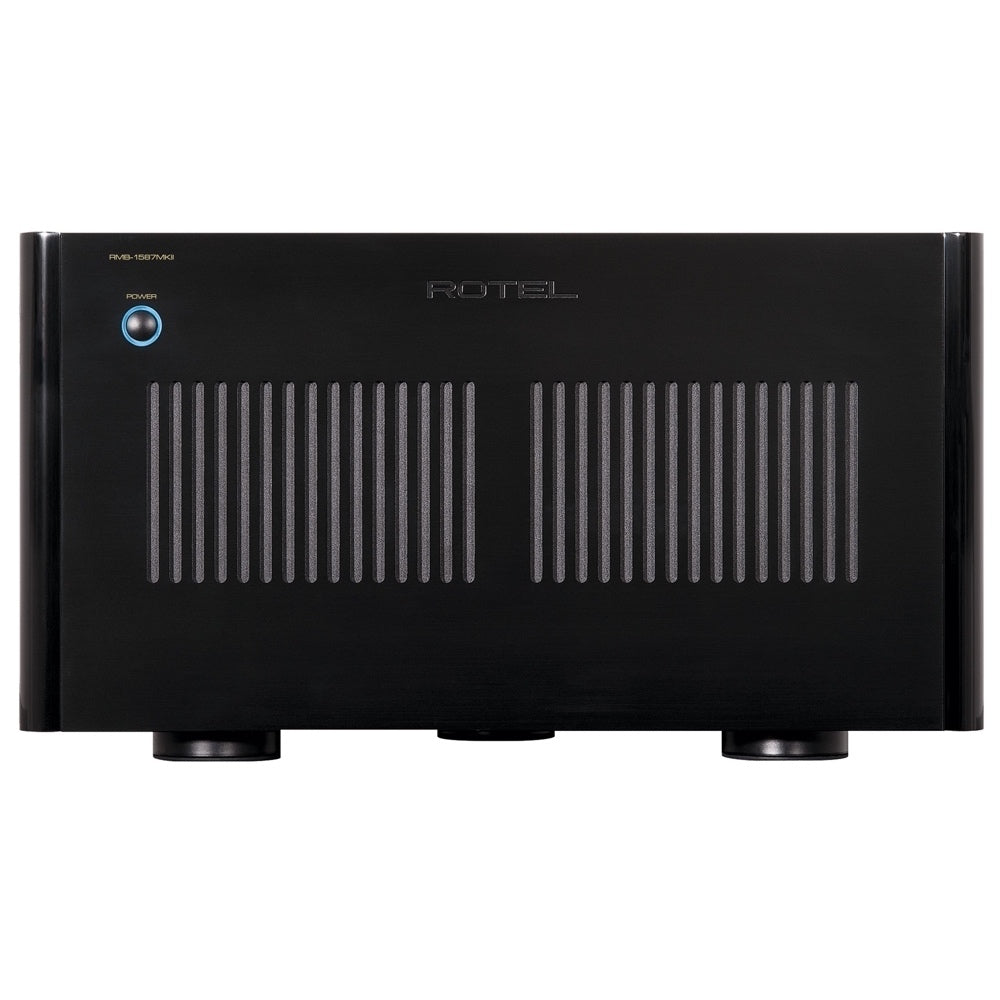

The Rotel RMB-1587 MKII is a high-current, seven-channel power amplifier designed for home theatre systems that require consistent, full-range performance across every channel. Built as part of Rotel’s MKII platform, it incorporates updated circuitry and component refinements to improve efficiency, reduce distortion, and maintain stability under demanding multi-channel loads.
Each of the seven channels delivers 155 watts into 8 ohms, with the ability to drive 4-ohm speakers at over 250 watts per channel—all channels driven. This consistent power delivery is a key part of the design, ensuring that performance does not drop off when multiple channels are active simultaneously—an important factor for modern surround and immersive audio systems.

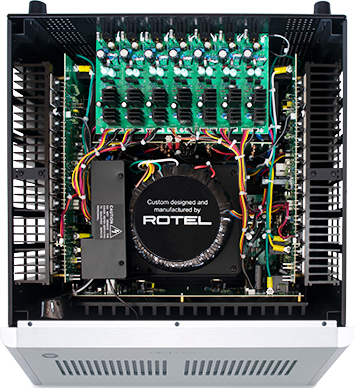

The amplifier is built around a substantial power supply featuring dual in-house manufactured toroidal transformers and high-capacity storage capacitors. This architecture provides stable current delivery across all channels, supporting dynamic peaks and maintaining control in complex passages. The internal layout is optimized for signal isolation and low noise, following Rotel’s Balanced Design Concept.

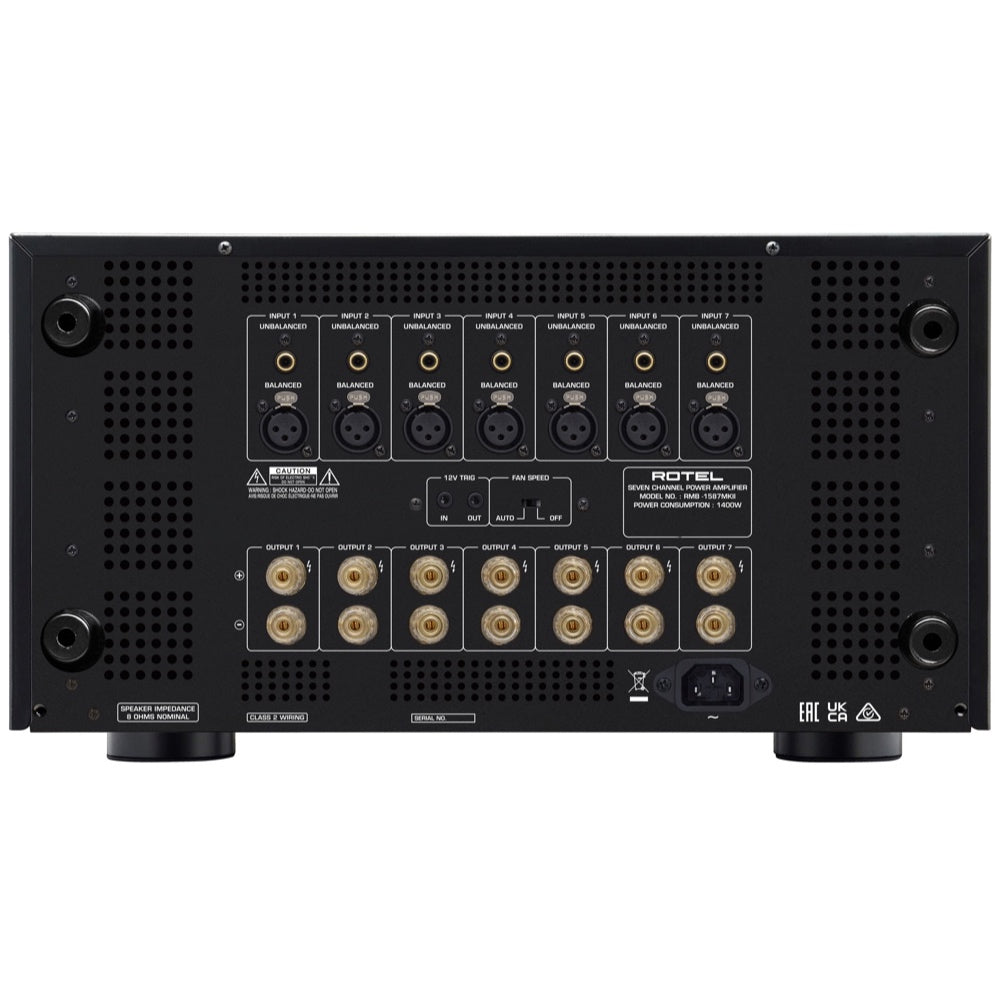

Connectivity is designed for straightforward system integration. The RMB-1587 MKII includes auto-sensing balanced XLR and single-ended RCA inputs, allowing it to work seamlessly with a wide range of AV processors and preamplifiers. A 12V trigger input and output enable synchronized power control, while the inclusion of rack ears and a 5U chassis height make it suitable for custom installations.
Thermal management is handled by a set of thermostat-controlled, low-noise cooling fans, ensuring reliable operation even in enclosed racks or high-demand environments. The overall construction is substantial, with a high-mass chassis designed to minimize vibration and maintain long-term durability.
Key Features:
- 7 x 155W per channel (8 ohms, all channels driven) Class AB amplification
- Over 250W per channel into 4 ohms
- Dual toroidal transformers with high-capacity power supply
- MKII circuit and component upgrades for improved performance
- Balanced (XLR) and single-ended (RCA) inputs with auto sensing
- 12V trigger input/output for system integration
- Thermostat-controlled low-noise cooling fans
- Rack-mount capable 5U chassis design
The Rotel RMB-1587 MKII is built for multi-channel systems that require consistent, high-current performance—providing the power and reliability needed to support modern home theatre installations without compromise.
