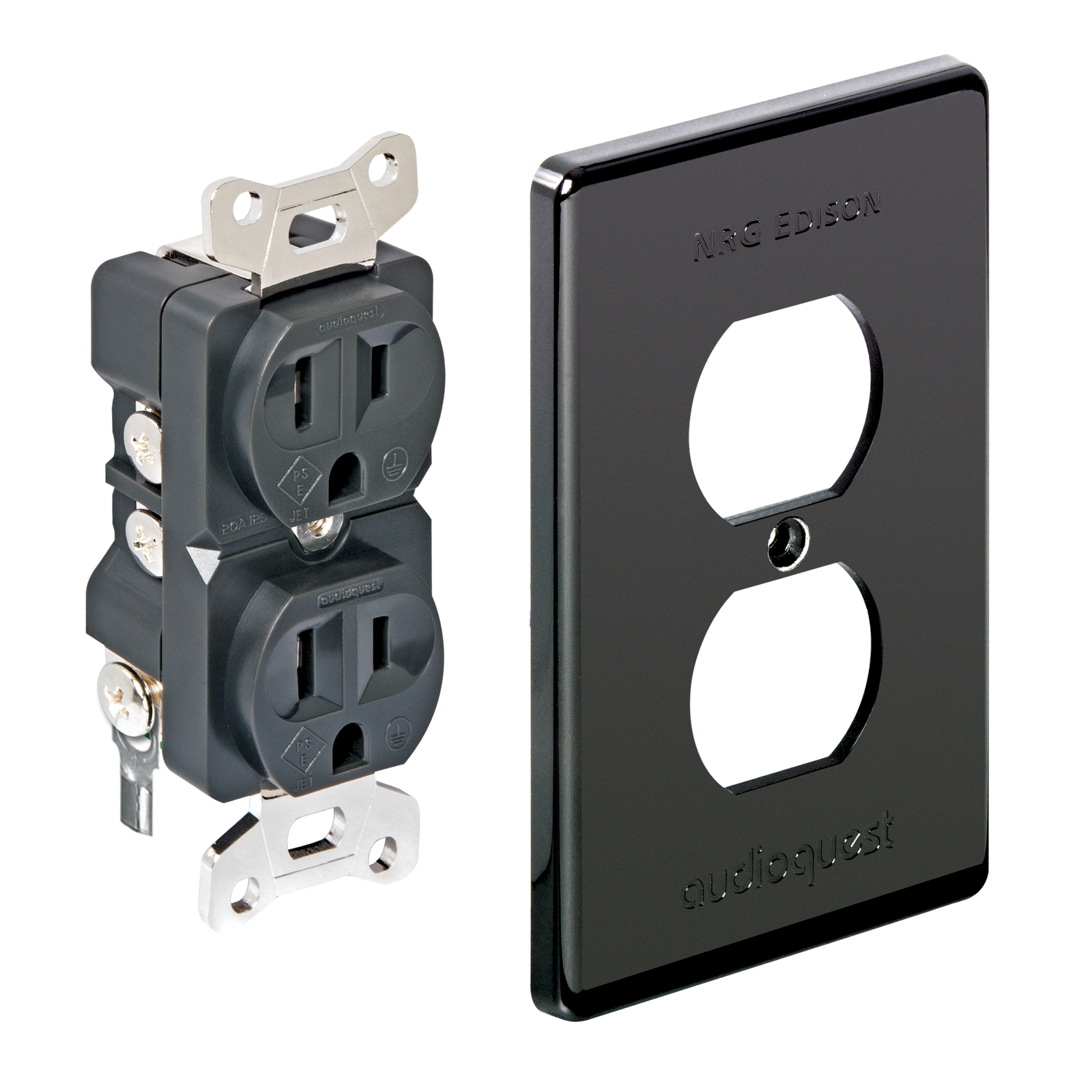

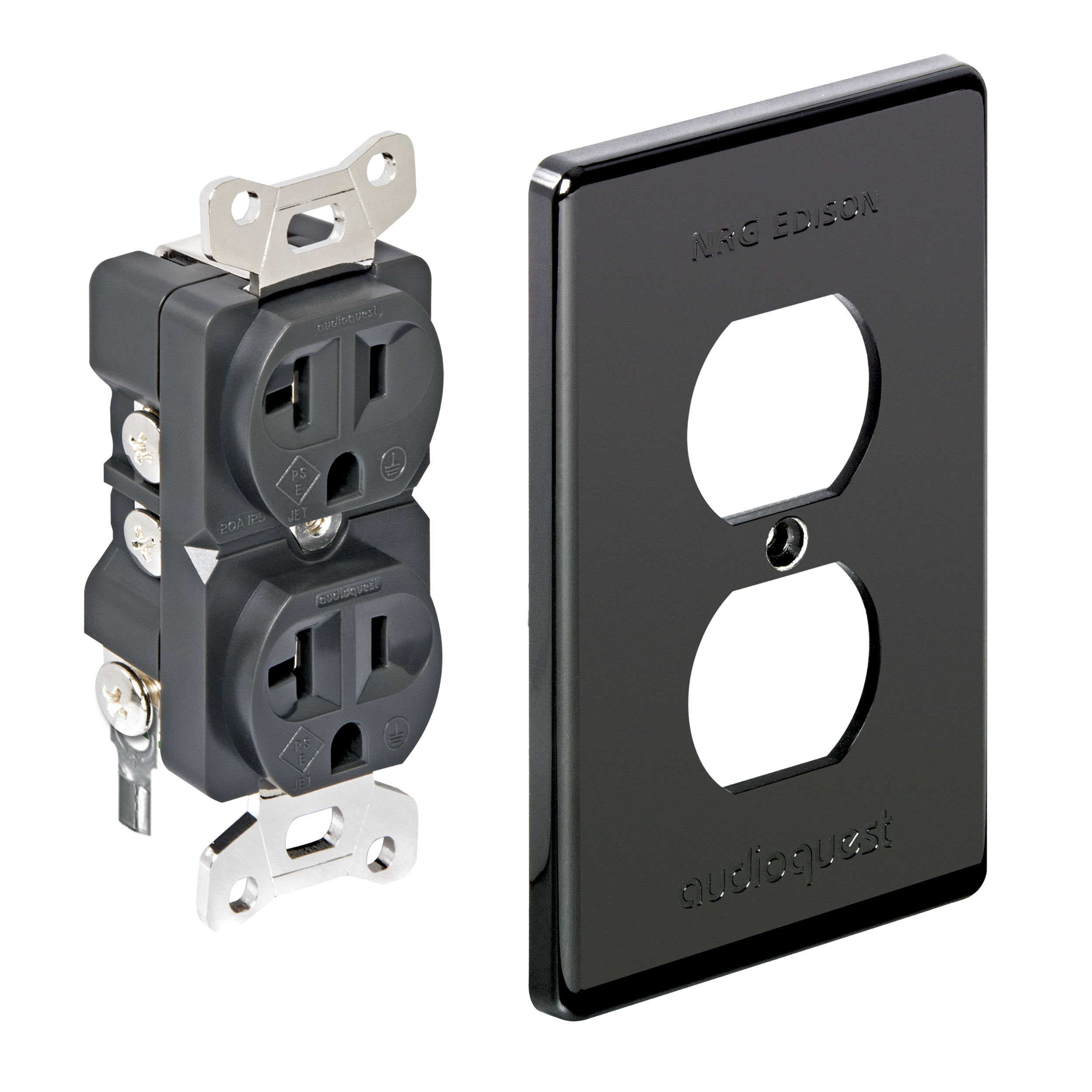

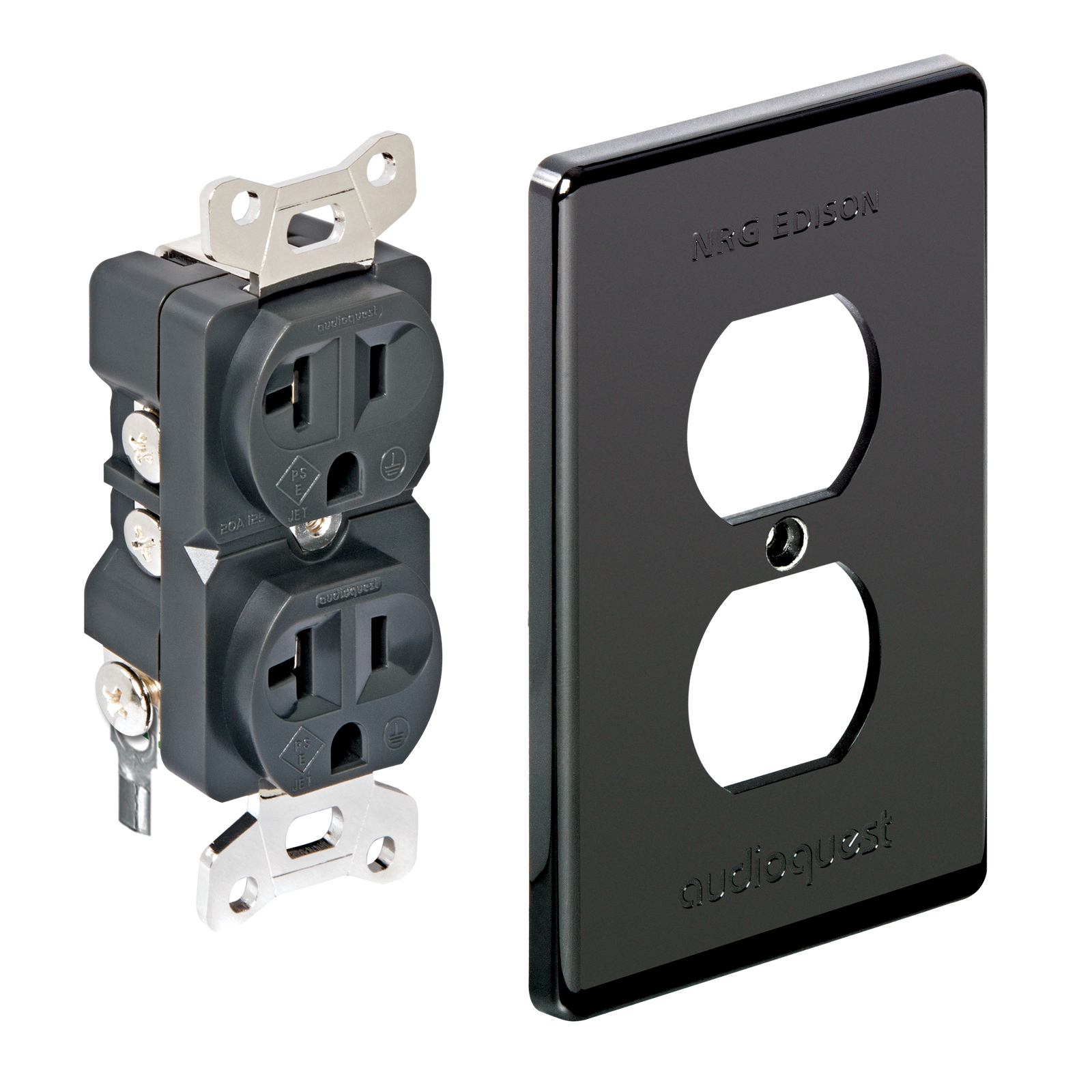

AudioQuest NRG Edison Duplex Wall Outlet

Polished High-Tension Surfaces with Hanging-Silver Plating
Ensures the lowest distortion of any plated or clad material. It also efficiently transfers signal-masking radio frequency noise toward your utilities transformer and earth ground, far away from your sensitive components.

Significantly Greater Metal Mass for Optimum Current Delivery
No other AC outlet boasts such low impedance for optimum current delivery. This is not only limited to the receptacles' retention blades, but includes the critical ground, wire, and spade-lug connections.

Beryllium-Copper Base Metal
This metal provides superior gripping strength and long-lasting, low-impedance AC power connections. Typical materials such as brass, and high-purity copper aided by spring and wedge devices cannot equal the unparalleled retention strength of high-mass beryllium-copper.

• Low-Z Power Noise-Dissipation
• Polished High-Tension Surfaces with Hanging- Silver Plating
• Significantly Greater Metal Mass For Optimum Current Delivery
• Beryllium-Copper Base Metal
• Includes Duplex Outlet, Wall Plate and Hardware

This AC outlet is intended for single phase AC branch circuits ranging from 220 to 240 volts AC, with either a 50 or 60 Hertz sine wave frequency. If the branch circuit uses a 15 amp circuit breaker, it is appropriate to employ the NRG Edison 15. For a 20 amp service, use an NRG Edison 20. The service circuit breaker should be 20 amp rated with at least #12 AWG wiring or heavier (lower number) gauge.

Recommendations for dedicated wiring:
The AudioQuest NRG Edison 15 & 20 AC duplex outlet can accommodate up to #8 AWG wiring, although #10 or #12 may have superior properties versus #8 AWG wire in terms of noise dissipation, that is, routing RF noise back to the electrical panel and ground rod-stake. This is due to skin effect at radio frequencies favoring thinner wire gauges, thus making noise reduction more efficient with a thinner wire gauge. This is an important consideration when optimizing your system with a dedicated line, that is, a discrete Line, Neutral, and Ground wire that travels back to your primary electrical panel without other AC outlets being daisy-chained or series connected to or from any of these wire leads.

The lower the wire resistance (using heavier wire-cable), the lower the AC impedance that is present at 50-60 Hz. This is an advantage for any power amplifier. However, it is equally true that providing optimal noise dissipation (routing radio frequency noise away from your system’s delicate components), is more efficient with slightly smaller wire diameters. Whenever possible, solid core electrical grade AC wiring will yield superior results. We find that when a dedicated AC line is installed, #10 to #12 AWG wiring is the best compromise regardless of whether the branch circuit is meant for 15 or 20 amp operation.

A dedicated line may not be possible (nor is it absolutely necessary), particularly if the installation is in a rented, leased, or temporary space. Even with stock wiring of a 10 or 15 amp service, your system will benefit greatly from the installation of the NRG Edison AC duplex outlet.

• Significantly Greater Metal Mass and Grip for Optimum Current Delivery: Includes the receptacles’ retention blades, as well as the critical ground, wire, and spade lug connections. No other AC outlet can match the AudioQuest NRG Edison’s ability to provide low impedance for optimum current delivery.
• Hanging-Silver Plated Surfaces and High-Tension Spring Action: AudioQuest’s NRG Edison outlets feature silver-plated surfaces and high-tension spring action. These elements exert great force on the plug, ensuring a high-pressure connection and the lowest distortion of any plated or clad material. Signal-masking radio-frequency noise is efficiently transferred toward the utility’s transformer and Earth ground — away from sensitive audio/video components.
• Beryllium-Copper Base Metal: Provides superior spring tension and long-lasting, low-impedance AC power connections. Typical materials such as brass, or even high-purity copper aided by spring and wedge devices, simply cannot equal the unparalleled retention strength of the high-mass beryllium-copper found in AudioQuest’s NRG Edison outlets.
• Superior Radio-Frequency Noise-Dissipation: While other AC outlets may use plated materials inside the outlet, the critical ground-noise dissipation is left to inferior distortion-causing steel, chrome, and nickel. AudioQuest’s NRG Edison outlets use high-conductivity silver over beryllium-copper contacts for superior radio-frequency noise-dissipation.
